Solution
# Imports
import numpy as np
import matplotlib.pyplot as plt
# Main qiskit imports
from qiskit import QuantumCircuit, QuantumRegister, ClassicalRegister
from qiskit_aer import AerSimulator
from qiskit_ibm_runtime.fake_provider import FakePerth
# Error mitigation
from qiskit_experiments.library.characterization import LocalReadoutError
# Noisy backend
backend = AerSimulator.from_backend(FakePerth())
# Local simulator
simulator = AerSimulator()
def zz_pump(q, c, p, system, ancilla):
"""Returns a QuantumCircuit implementing the ZZ pump channel on the system qubits
Args:
q (QuantumRegister): the register to use for the circuit
c (ClassicalRegister): the register to use for the measurement of the system qubits
p (float): the efficiency for the channel, between 0 and 1
system (list): list of indices for the system qubits
ancilla (int): index for the ancillary qubit
Returns:
A QuantumCircuit object
"""
zz = QuantumCircuit(q, c)
theta = 2 * np.arcsin(np.sqrt(p))
# Map information to ancilla
zz.cx(q[system[0]], q[system[1]])
zz.x(q[ancilla])
zz.cx(q[system][1], q[ancilla])
# Conditional rotation
zz.cu(theta, 0.0, 0.0, 0.0, q[ancilla], q[system[1]])
# Inverse mapping
zz.cx(q[system[1]], q[ancilla])
# Measurement
zz.h(q[system[0]])
zz.measure(q[system[0]], c[0])
zz.measure(q[system[1]], c[1])
return zz
def xx_pump(q, c, p, system, ancilla):
"""Returns a QuantumCircuit implementing the XX pump channel on the system qubits
Args:
q (QuantumRegister): the register to use for the circuit
c (ClassicalRegister): the register to use for the measurement of the system qubits
p (float): the efficiency for the channel, between 0 and 1
system (list): list of indices for the system qubits
ancilla (int): index for the ancillary qubit
Returns:
A QuantumCircuit object
"""
xx = QuantumCircuit(q, c)
theta = 2 * np.arcsin(np.sqrt(p))
# Map information to ancilla
xx.cx(q[system[0]], q[system[1]])
xx.h(q[system[0]])
xx.x(q[ancilla])
xx.cx(q[system[0]], q[ancilla])
# Conditional rotation
xx.cu(theta, 0.0, 0.0, 0.0, q[ancilla], q[system[0]])
# Inverse mapping
xx.cx(q[system[0]], q[ancilla])
# Measurement
xx.measure(q[system[0]], c[0])
xx.measure(q[system[1]], c[1])
return xx
def zz_xx_pump(q, c, p, system, ancillae):
"""Returns a QuantumCircuit implementing the composition channel on the system qubits
Args:
q (QuantumRegister): the register to use for the circuit
c (ClassicalRegister): the register to use for the measurement of the system qubits
p (float): the efficiency for both channels, between 0 and 1
system (list): list of indices for the system qubits
ancillae (list): list of indices for the ancillary qubits
Returns:
A QuantumCircuit object
"""
zx = QuantumCircuit(q, c)
theta = 2 * np.arcsin(np.sqrt(p))
# ZZ pump
## Map information to ancilla
zx.cx(q[system[0]], q[system[1]])
zx.x(q[ancillae[0]])
zx.cx(q[system[1]], q[ancillae[0]])
## Conditional rotation
zx.cu(theta, 0.0, 0.0, 0.0, q[ancillae[0]], q[system[1]])
## Inverse mapping
zx.cx(q[system[1]], q[ancillae[0]])
# XX pump
## Map information to ancilla
zx.h(q[system[0]])
zx.x(q[ancillae[1]])
zx.cx(q[system[0]], q[ancillae[1]])
## Conditional rotation
zx.cu(theta, 0.0, 0.0, 0.0, q[ancillae[1]], q[system[0]])
## Inverse mapping
zx.cx(q[system[0]], q[ancillae[1]])
# Measurement
zx.measure(q[system[0]], c[0])
zx.measure(q[system[1]], c[1])
return zx
For convenience, we define a function returning the four initial state preparations
def initial_conditions(q, system):
"""Returns a dictionary containing four QuantumCircuit objects which prepare the two-qubit system in different initial states
Args:
q (QuantumRegister): the register to use for the circuit
system (list): list of indices for the system qubits
Returns:
A dictionary with the initial state QuantumCircuit objects and a list of labels
"""
# State labels
state_labels = ['00', '01', '10', '11']
ic = {}
for ic_label in state_labels:
ic[ic_label] = QuantumCircuit(q)
# |01>
ic['01'].x(q[system[0]])
# |10>
ic['10'].x(q[system[1]])
# |11>
ic['11'].x(q[system[0]])
ic['11'].x(q[system[1]])
return ic, state_labels
SHOTS = 8192
# The values for p
p_values = np.linspace(0, 1, 10)
# We create the quantum circuits
q = QuantumRegister(5, name='q')
c = ClassicalRegister(2, name='c')
## Index of the system qubit
system = [2, 1]
## Indices of the ancillary qubits
a_zz = 0
a_xx = 4
## Prepare the qubits in four initial conditions
ic_circs, ic_state_labels = initial_conditions(q, system)
## Three different channels, each with
## four initial conditions and ten values of p
pumps = ['ZZ', 'XX', 'ZZ_XX']
circuits = {}
for pump in pumps:
circuits[pump] = {}
for ic in ic_state_labels:
circuits[pump][ic] = []
for ic in ic_state_labels:
for p in p_values:
circuits['ZZ'][ic].append(ic_circs[ic].compose(zz_pump(q, c, p, system, a_zz)))
circuits['XX'][ic].append(ic_circs[ic].compose(xx_pump(q, c, p, system, a_xx)))
circuits['ZZ_XX'][ic].append(ic_circs[ic].compose(zz_xx_pump(q, c, p, system, [a_zz, a_xx])))

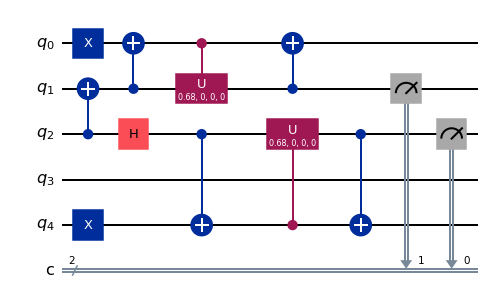

circuits['ZZ_XX']['00'][1].draw(output='mpl')
# Execute the circuits on the local simulator
jobs_sim = {}
for pump in pumps:
jobs_sim[pump] = {}
for ic in ic_state_labels:
jobs_sim[pump][ic] = simulator.run(circuits[pump][ic], shots = SHOTS)
# Analyse the outcomes
overlaps_sim = {}
for pump in pumps:
overlaps_sim[pump] = {}
for ic in ic_state_labels:
overlaps_sim[pump][ic] = [0.0]*len(p_values)
for i in range(len(p_values)):
for ic in ic_state_labels:
counts = jobs_sim[pump][ic].result().get_counts(i)
for outcome in counts:
overlaps_sim[pump][outcome][i] += counts[outcome]/(4.0 * float(SHOTS))

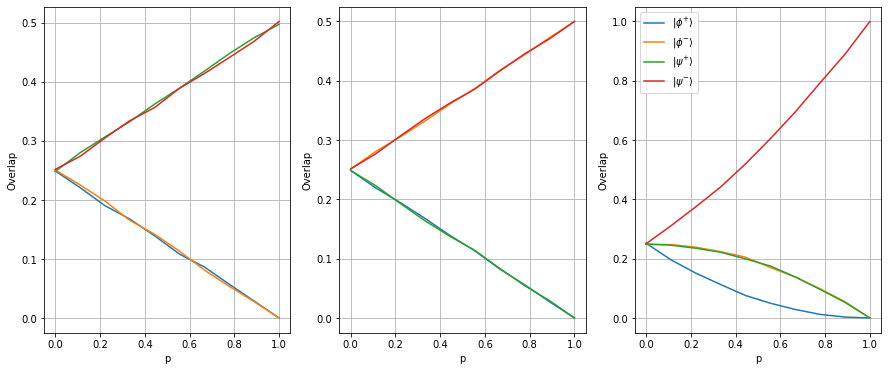

# Plot the results
fig_idx = 131
plt.figure(figsize=(15,6))
bell_labels = {'00': r"$| \phi^{+} \rangle$", '01': r"$| \phi^{-} \rangle$", '10': r"$| \psi^{+} \rangle$", '11': r"$| \psi^{-} \rangle$"}
for pump in pumps:
plt.subplot(fig_idx)
for outcome in overlaps_sim[pump]:
plt.plot(p_values, overlaps_sim[pump][outcome], label = bell_labels[outcome])
plt.xlabel('p')
plt.ylabel('Overlap')
fig_idx += 1
plt.grid()
plt.legend()
exp = LocalReadoutError(system, backend=backend)
exp.analysis.set_options(plot=True)
res = exp.run(shots=SHOTS)
mitigator = res.analysis_results(0).value
res.figure(0)
# Execute the circuits on the local simulator
jobs_sim = {}
for pump in pumps:
jobs_sim[pump] = {}
for ic in ic_state_labels:
jobs_sim[pump][ic] = backend.run(circuits[pump][ic], shots = SHOTS)
overlaps = {}
overlaps_mit = {}
for pump in pumps:
overlaps[pump] = {}
overlaps_mit[pump] = {}
for ic in ic_state_labels:
overlaps[pump][ic] = [0.0]*len(p_values)
overlaps_mit[pump][ic] = [0.0]*len(p_values)
for i in range(len(p_values)):
for ic in ic_state_labels:
counts = jobs_sim[pump][ic].result().get_counts(i)
unmitigated_probs = {label: count / SHOTS for label, count in counts.items()}
mitigated_quasi_probs = mitigator.quasi_probabilities(unmitigated_probs)
mitigated_probs = mitigated_quasi_probs.nearest_probability_distribution().binary_probabilities()
for outcome in unmitigated_probs:
overlaps[pump][outcome][i] += unmitigated_probs[outcome]/4
for outcome in mitigated_probs:
overlaps_mit[pump][outcome[::-1]][i] += mitigated_probs[outcome]/4

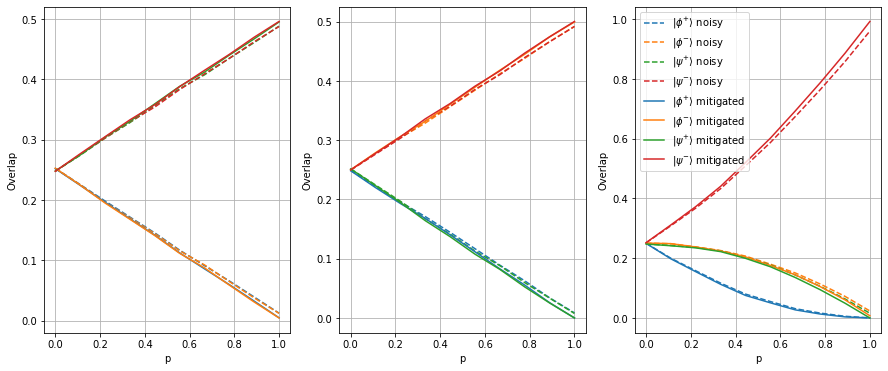

# Plot the results
fig_idx = 131
plt.figure(figsize=(15,6))
colors = plt.rcParams['axes.prop_cycle'][0:4]
cycler_2 = plt.cycler(color=colors)
bell_labels = {'00': r"$| \phi^{+} \rangle$", '01': r"$| \phi^{-} \rangle$", '10': r"$| \psi^{+} \rangle$", '11': r"$| \psi^{-} \rangle$"}
for pump in pumps:
plt.subplot(fig_idx)
plt.gca().set_prop_cycle(cycler_2)
for outcome in overlaps[pump]:
plt.plot(p_values, overlaps[pump][outcome], label = f"{bell_labels[outcome]} noisy", ls='--')
for outcome in overlaps_mit[pump]:
plt.plot(p_values, overlaps_mit[pump][outcome], label = f"{bell_labels[outcome]} mitigated")
plt.xlabel('p')
plt.ylabel('Overlap')
fig_idx += 1
plt.grid()
plt.legend()
The difference between the readout error mitigated and non-mitigated results are not very big, because we're only measuring 2 qubits here. The more qubits we have the more errors we accumulate and the more readout error mitigation becomes important!
